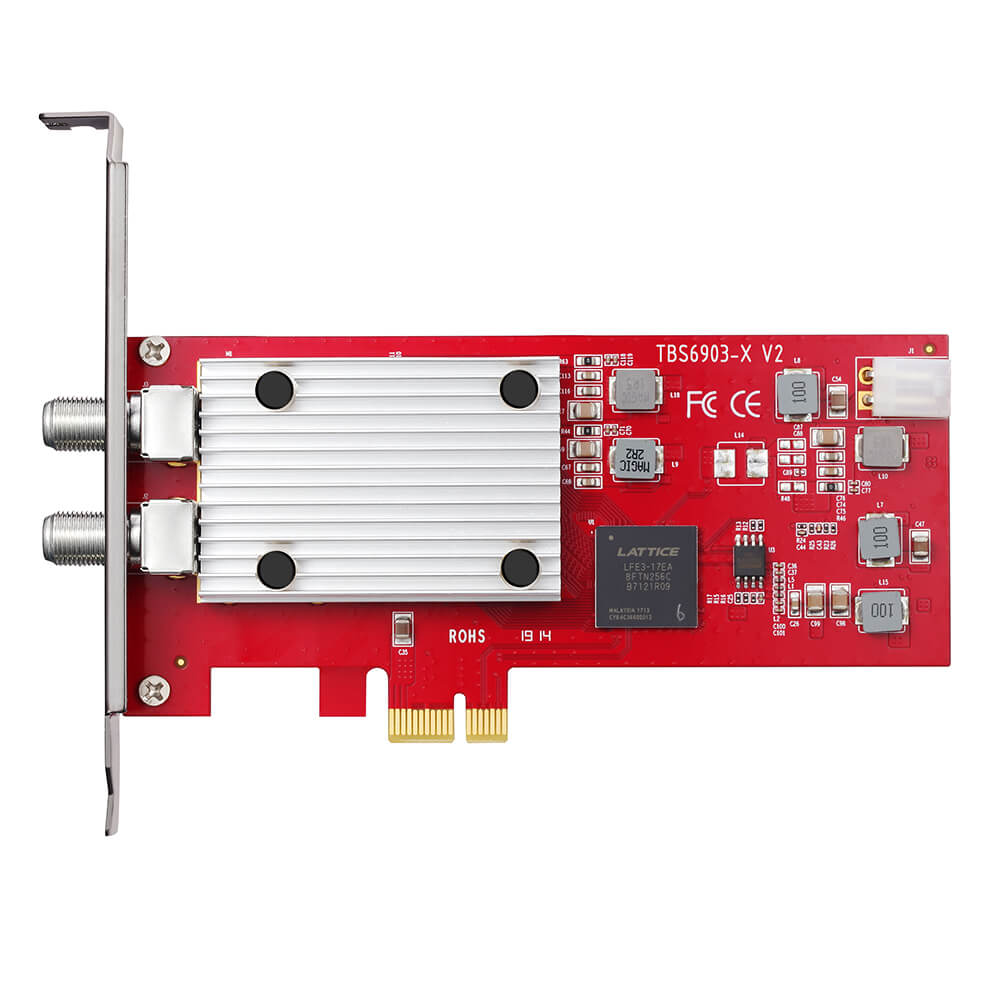

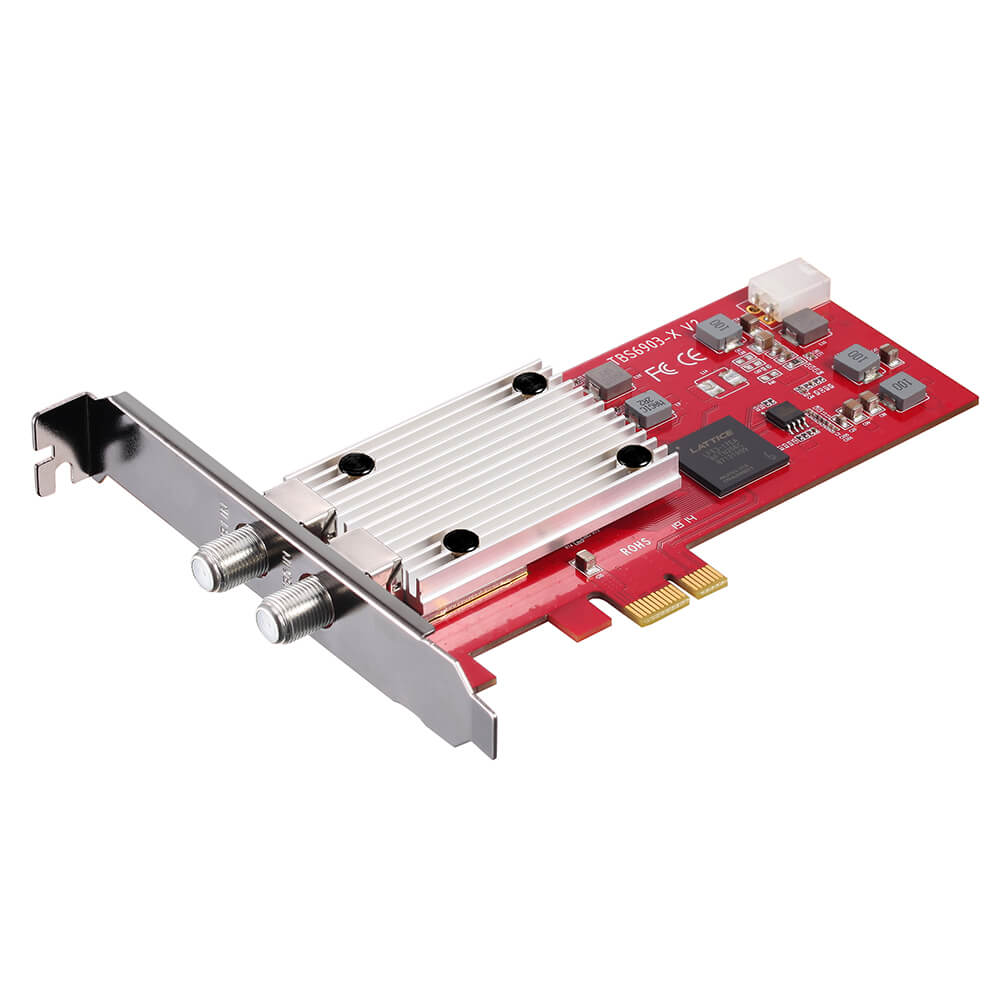

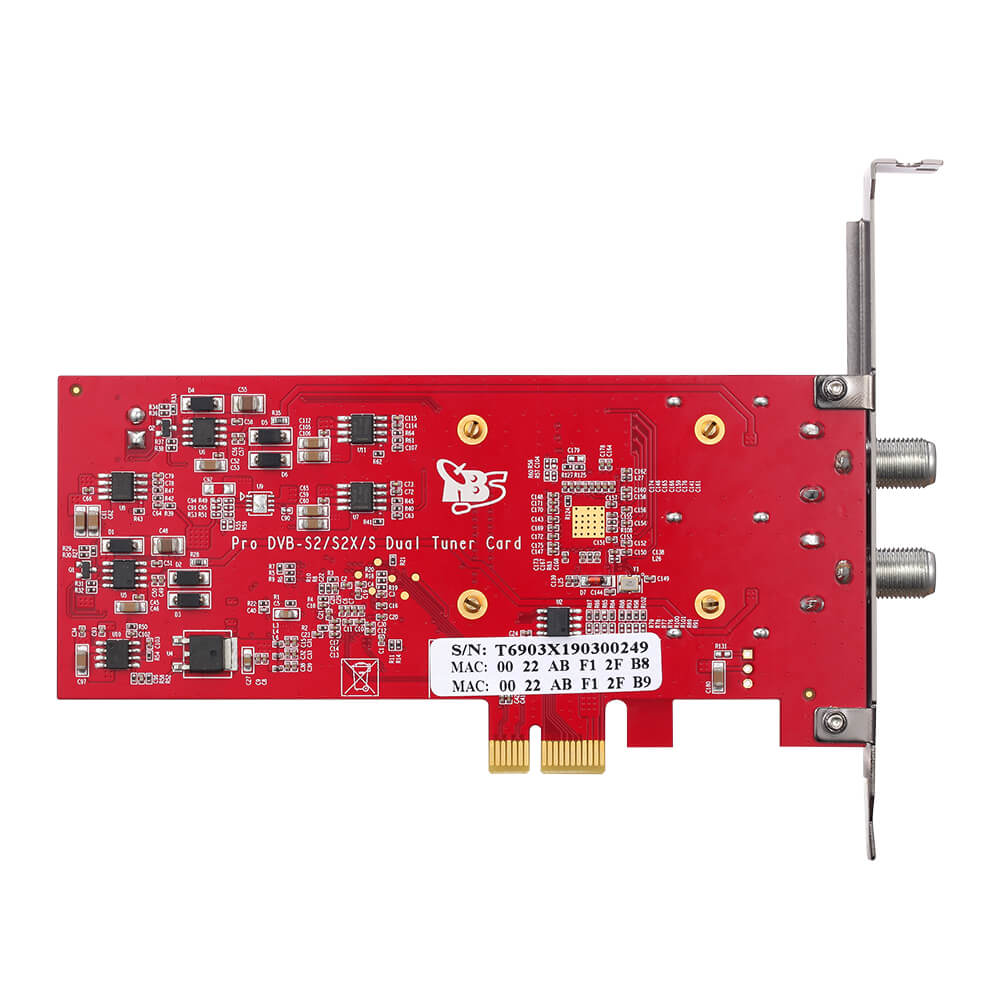

TBS6903-X DVB-S2X/-S2/-S Dual-Tuner, Professional PCIe Satellite-TV-card duální satelitní karta DVB-S2/S2X do PCIe slotu ,všechna rozlišení a kodeky (např.: 1080p FullHD, 4K, MPEG, H.264, HEVC a mnoho dalších) jsou podporována, avšak v závislosti na vašem PC-hardware/software

The TBS-6903-X is a Professional level digital satellite TV Tuner card with PCI Express interface. TBS-6903-X supports not only normal DVB-S2X/S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also CCM, ACM, VCM, 16APSK, 32APSK, Multiple Transport Stream, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can?t support. With use of dedicated TBS tools, those special streams can be captured. The two advanced DVB-S2/S tuners enable you to watch TV channel from one satellite transponder, while recording channels from different satellite transponders from another tuner at the same time.

Product Features

DVB-S2X/S2 dual tuner
Watch & record satellite TV / radio programs on PC
CCM, VCM, ACM and Multi Input Stream support
Generic stream mode Support
Blind scan support
EPG (Electronic Program Guide) support
Unicable / one cable compatible
Hight-speed data download via satellite

Specifications

DVB-S/-S2:
QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK: 3/4, 4/5, 5/6, 8/9, 9/10

DVB-S2X:
QPSK: 1/4, 1/3, 2/5 (S2-MODCODs)
1/2, 3/5, 2/3, 3/4, 4/5, 5/6
8/9, 9/10 (S2-MODCODs)
11/45, 4/15, 14/45, 7/15, 8/15, 32/45
8PSK: 3/5, 2/3, 3/4, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 32/45
16APSK: 2/3, 3/4, 4/5, 5/6, 8/9 (S2-MODCODs)
7/15, 8/15, 26/45, 3/5, 32/45
32APSK: 2/3, 32/45
64APSK: 32/45/L, 11/15, R/5E, 7/9
R/60, 4/5, R/62, 5/6
128APSK: 3/4, 7/9, 29/45/L, 2/3/L
256APSK: 31/45/L, 32/45, 11/15/L, 3/4
VCM: Yes
CCM: Yes

Maximum symbol DVB-S2X/S2 rate limitations (Msymb/s)

Msymb/s - Demod - LDPC
QPSK - 64 - 720
8PSK - 64 - 720
16APSK - 64 - 720
32APSK - 51 - 720
64APSK - 43 - 720

Connections and other details

two satellite TV antenna inputs
Max. dimensions of the card (W x D x H in cm):
Weight:

Applications

Data receiving
IPTV streaming
Media monitoring

Minimal System Requirements

Operating system (32-Bit and 64-Bit): Windows® XP, Vista®, Windows7®, Windows8.x, Windows10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Digital TV signal (DVB-S/-S2/-S2X)

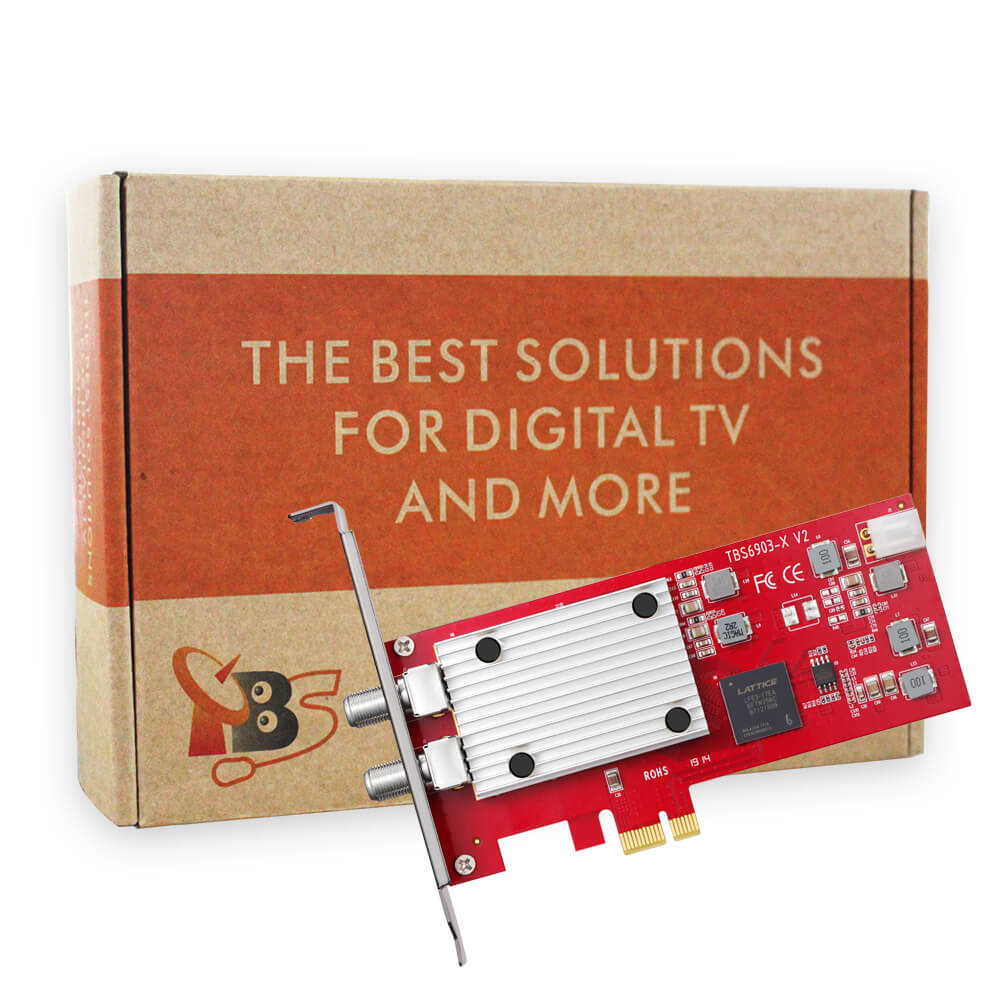

Package Content

1 x Octa-Tuner TBS-6903 -X
1 x PCIe Power adapter cable
1 x drivers, Quick Installation Guide and Software (as download)

(vyhradzujeme si právo meniť tieto popisy a špecifikácie bez predošlého upozornenia)
