DVB-S2/DVB-S SD or HD TV receiving
Watch satellite TV & listen to radio on PC
Dual tuner for recording two different channels/transponders
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite
Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution
Specifications:
Frequency range: 950~2150 MHz
Signal Level: -85~-10dB
Symbol rate:
DVB-S QPSK 1-45Msps
DVB-S2 QPSK/8PSK 1-45Msps
Automatic acquisition range : ±10MHz
Automatic pilot detection:
DVB-S2 CCM:
QPSK+1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK+3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
16APSK+/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK+3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
QPSK+1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC support: 1.0, 1.2, 2.x
Connections
PCI Express
2x LNB IN
System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB
Please Note:
1. ALL TBS new models will not supply CDs. please download the driver and software from TBSDTV.com website.
2. TBS 6902 model not support remote control.
Package included:

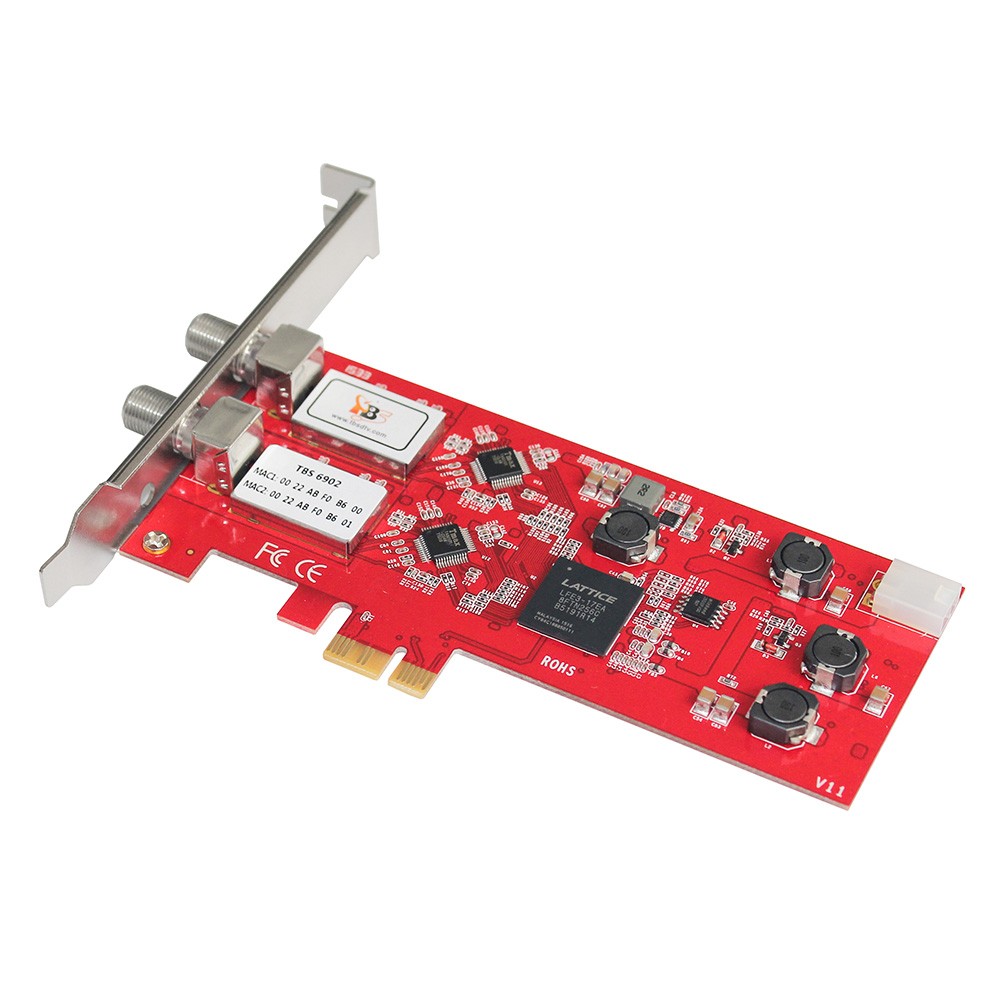

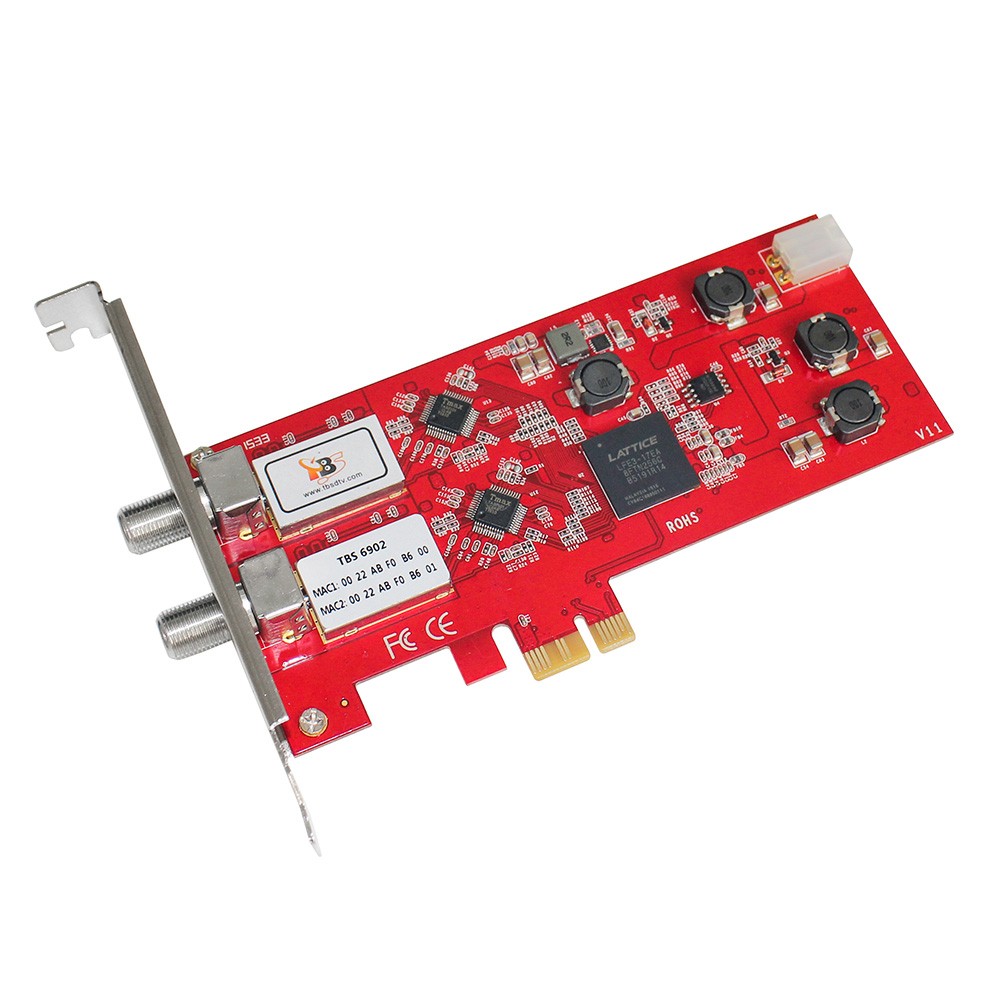

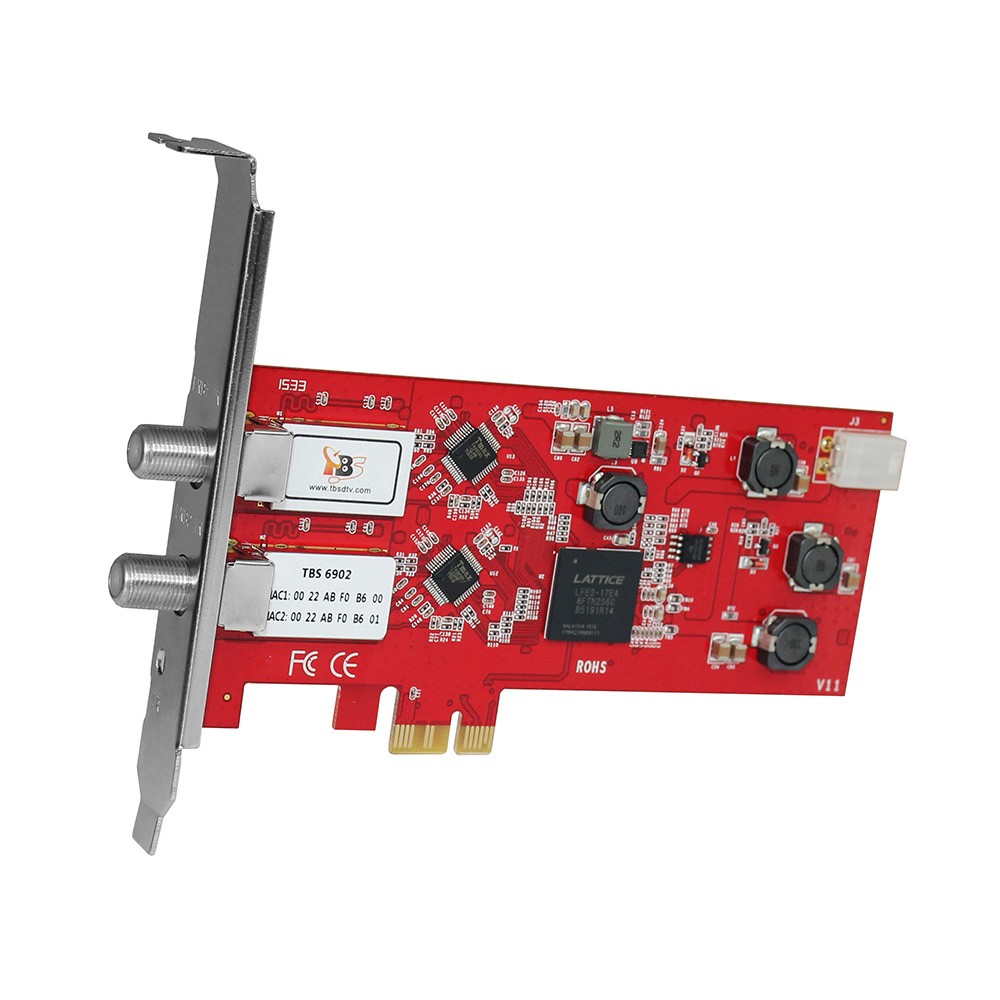

1 x TBS 6902 dvb-s2 dual tuner pci-e card
1 x Power cable
1 x Low profile bracket
