TBS5927 je profesionální digitální satelitní TV tuner boxa s USB 2.0 připojením k PC. TBS5927 podporuje nejen normální DVB-S2 / DVB-S QPSK, 8PSK který je podporován běžnými satelitními přijímači, ale také ACM, VCM, Multi Imput stream, 16APSK a režim 32APSK, Multiple Generic Stream, Kombinovaný Single Generic & Single TS, většina z nich satelitní přijímače nepodporují., podpora UNICABLE, Blindscan - vyhledávání na slepo, rovněž všechna rozlišení a kodeky (např .: 1080p FullHD, 4K, MPEG, H.264, HEVC a mnoho dalších) jsou podporována, avšak v závislosti na vašem PC-hardware/software

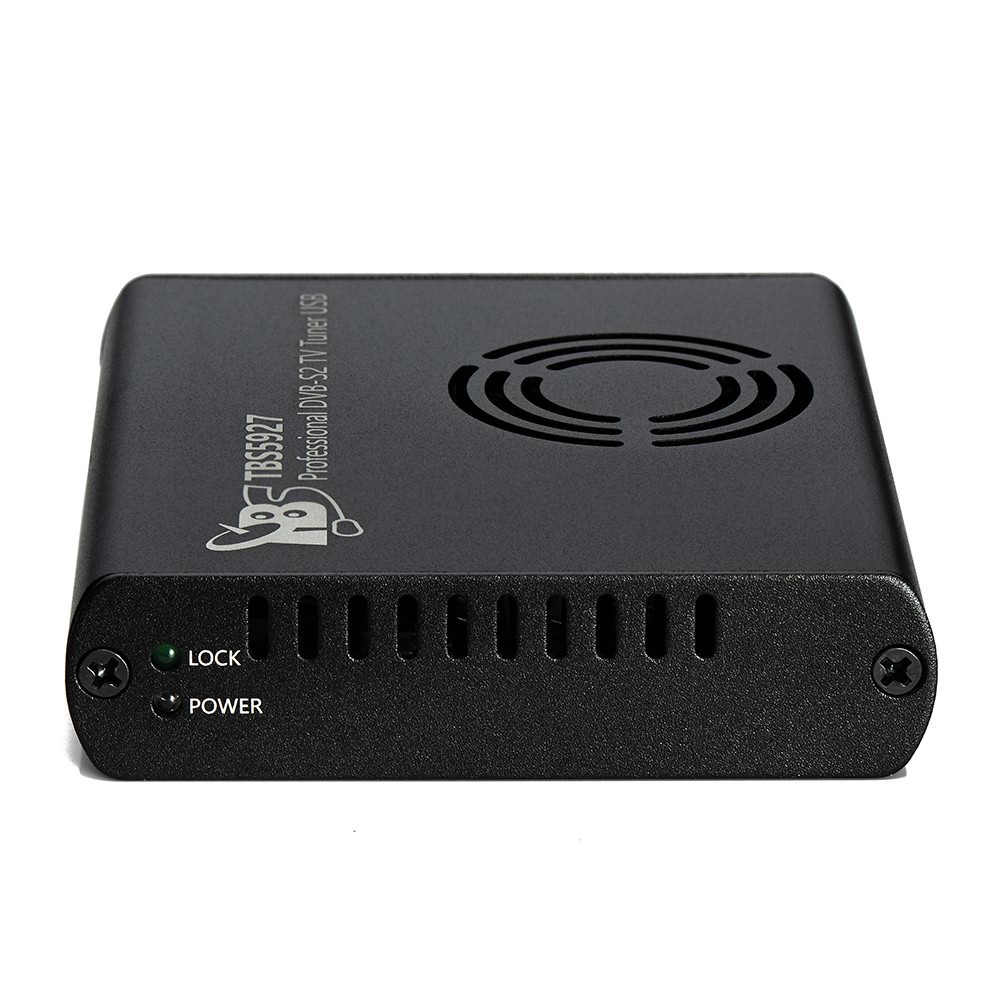

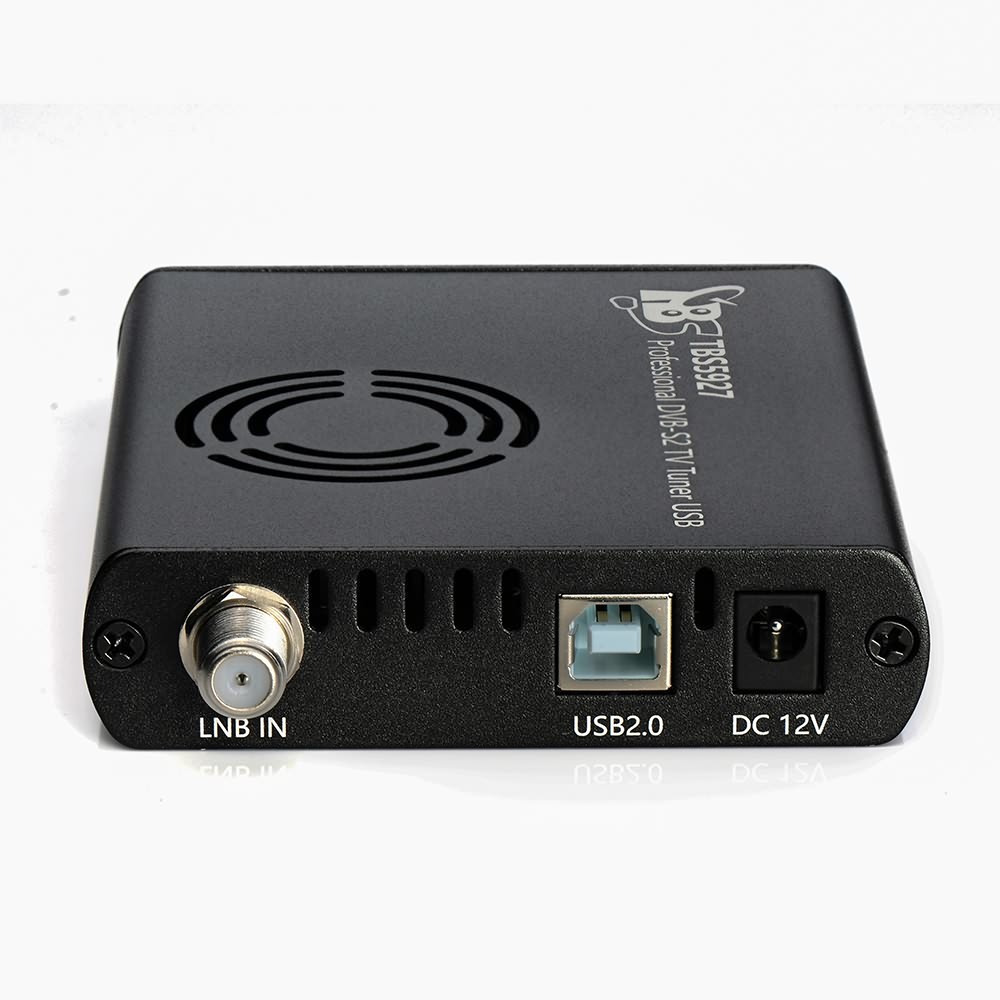

TBS5927 is a Professional level digital satellite TV Tuner box with USB2.0 connection to PC. TBS5927 supports not only normal DVB-S2/DVB-S QPSK, 8PSK which is supported by normal satellite receivers, but also ACM, VCM, Multi Input Stream, 16APSK and 32APSK mode, Multiple Generic Stream, Combined Single Generic &Single TS, which most satellite receiving devices can’t support. The built in hardware blind scan feature allows scanning of unknown satellite transponder with symbol rate as low as 200ksps, while most satellite receiving device can receive no less than 1Msps symbol rate. With use of dedicated TBS tools, those special streams can be captured. Both Windows BDA driver and Linux driver are provided.

Main Features:

  • EUMETCast Compatibility
  • DVB-S2/S Transponders Receiving
  • CCM, VCM,ACM and Multi Input Stream Support
  • Watch & record satellite TV/ radio programs onPC
  • Wide range symbol rates support from 200Ksps to 45Msps
  • High-speed Data download via Satellite
  • Unicable/One Cable compatible
  • Blindscansupport
  • High reliability

Specification

Receiving Frequency950~2150 MHz Tuning Range
Input level-69~-23dBm
DemodulatorYes
Symbol Rate:
DVB-S QPSK0.2~45Msps
DVB-S2 QPSK/8PSK0.2~45Msps
DVB-S2 CCM ACM VCMQPSK+1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
8PSK+3/5, 2/3, 3/4, 5/6, 8/9, 9/10
16APSK+2/3, 3/4, 4/5, 5/6, 8/9, 9/10
32APSK+3/4, 4/5, 5/6, 8/9, 9/10
DVB-SQPSK+1/2, 2/3, 3/4, 5/6, 7/8
Data Burst & Tone BurstSupport
DiSEqC2.X and MotorSupport
Carrier Capture Range: ±10MHz±10MHz
ApplicationsData receiving
IPTV streaming
Media monitoring
Digital content distribution
Power consumption
Input/Power:+12/
temperature0~60℃
System RequirementsWindows 2000/XP/Vista/7/8/10 or Linux
Available USB2.0 Port
Satellite Dish and LNB
Dimension
TV tuner Boxsize12x9x2 (cm)
Net weight190g
Gift Box Size16x16x8(cm)
Weight615g

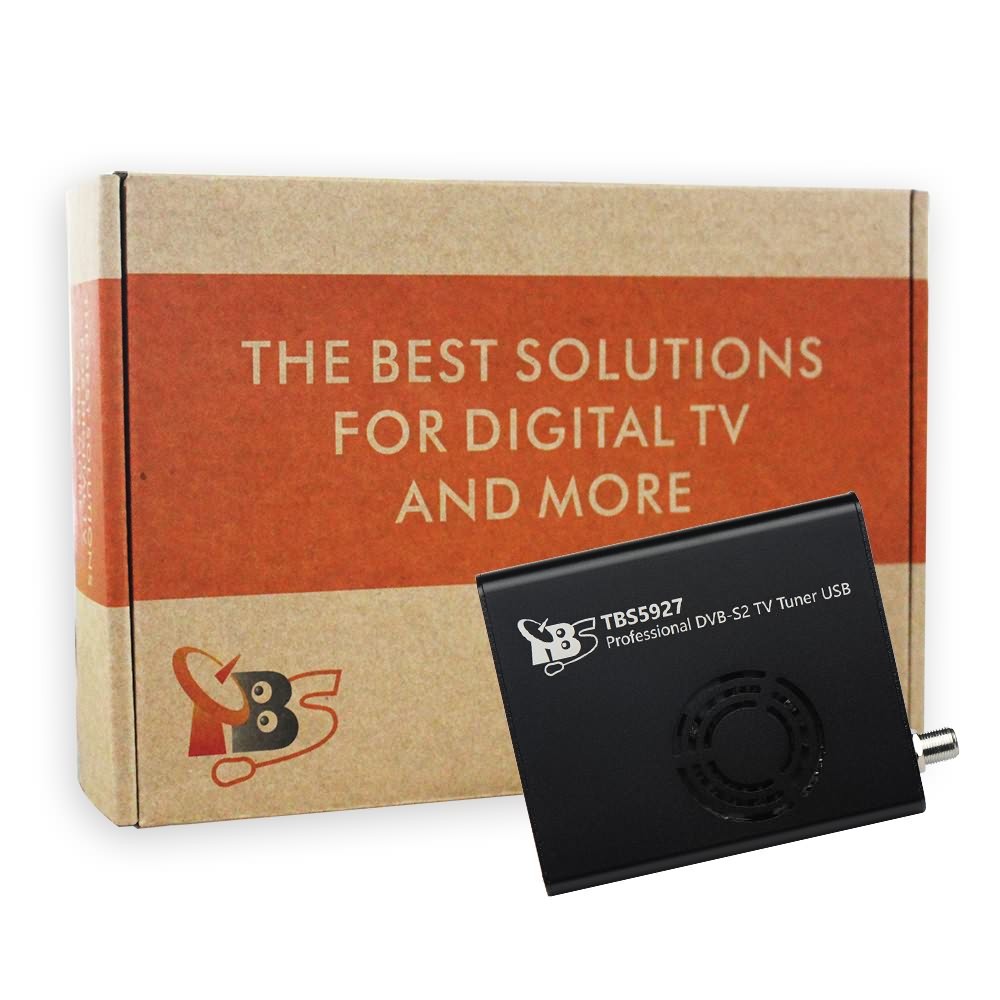

Package Contents1 x TBS5927
1 x Power adapter
1 x USB cable
(vyhradzujeme si právo meniť tieto popisy a špecifikácie bez predošlého upozornenia)
