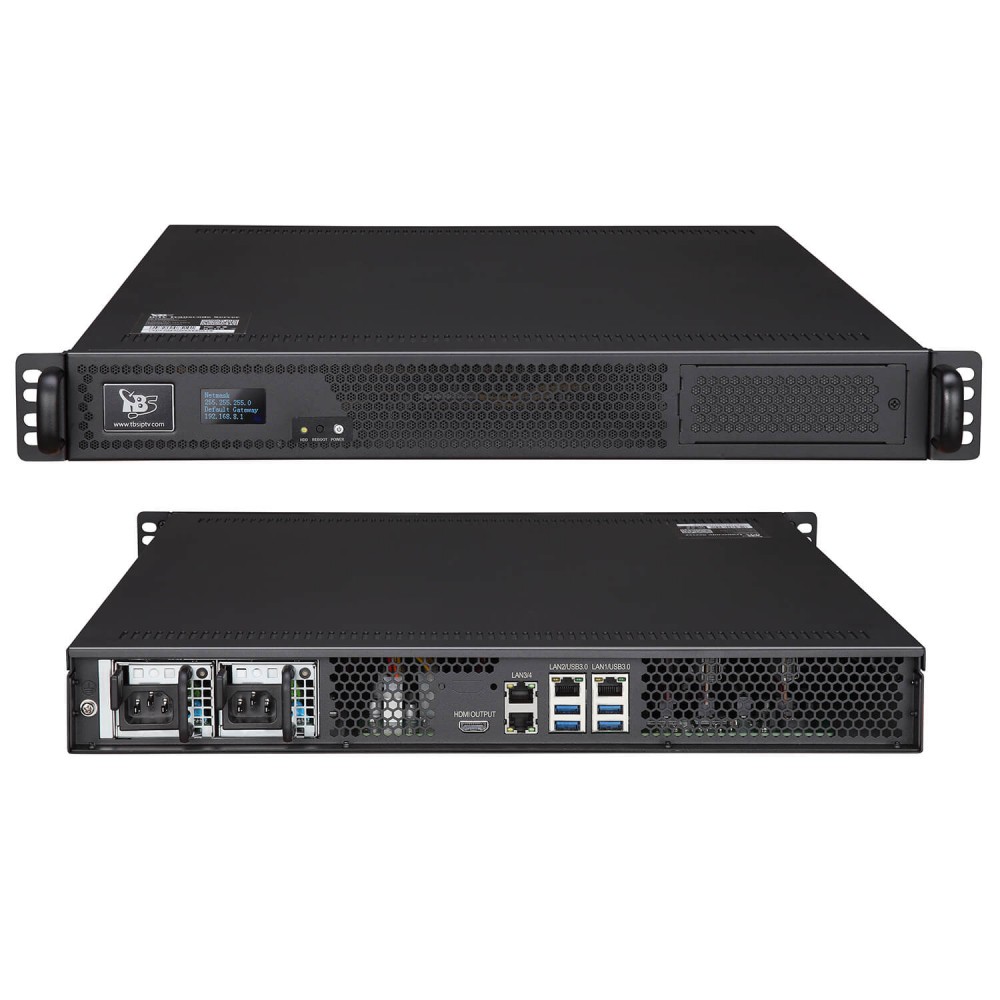

The TBS-8510 is a real-time multi-channels/format transcoder server, which supports to convert media files from their source format into the best-possible-quality streams to each user's specific device. It allows to convert streams to any MPEG-2, MPEG-4 or H.264/H.265 format, bitrate and resolution.
The TBS-8510 real-time transcoder is a cost-effective IPTV/OTT headend server, as it supports 20 HD channels or 40 SD channels transcoding, with protocol of UDP, RTP, RTMP, HTTP, HLS and Media Files.
Based on the powerful hardware, TBS-8510 real-time transcoder enables to deliver impressive images to various servers, such as Adobe Flash Server, Wowza Server, Windows Media Server, Apples HTTP Live Streaming and so on.
TBS-8510 can be easily managed through NMS system and has become an ideal solution for operator to provide high quality video transcoding. It is a real multi-channel/formal transcoding server which answers all market requirements and is thus the suitable solution to Terrestrial, Satellite, Cable, IPTV networks.
Product features
High performance transcoder supports to convert up to 20 x Full HD or 40 x SD profiles.
Multiple inputs available: DVB-S/-T2/-T/-C, ISDB-T, HDMI, ASI or IP.
Optimized for Kbps for SD, 1800Kbps for HD 720P, 2500Kbps for HD 1080p.
Supports HEVC / H.265 transcoding
Baseline, main profile and high profile with variable GOP
Multiple codec, Protocol, Bitrate Resolution, Profile per channel
GbE IP output: UDP, RTMP, Pull/Push HTTP, HTTP, Live Smooth (HLS), FTP M3u8 playlist files.
Flexible GOP structures with Reference-frame and B-frame edit.
Frame rate down and up conversion.
High quality pre-processing including filtering, deinterlacing, cross scalling, image insertion.
Support variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency.
Based on embedded Centos 7 Linux.
DVB Subtitle and Logo insertion.
Parameter templates settings and imports.
Easy configuration via Web UI.
Designed for secure 24 x 365 operation.
Specifications
Input
2xRJ45, 1000M Base-T2 Interface
2xPCIe-Slot Interface
Signal: DVB-S/-S2, DVB-T/-T2, DVB-C, ATSC, ISDBT, DTMB, HDMI, ASI
Net Stream: UDP, RTP, HTTP, HLS, Media Files
Video Codecs: MPEG-2, AVC/H.264, HEVC/H.265
Resolution: 1920x1080P, 1920x1080i, 1280x720P, 720x576i, 480x576, 544x576, 640x576, 704x576
Audio Codecs: AAC, MP2, MP3, AC-3
Output
Types: UDP, RTMP, HTTP, HLS (ABR), Media Files
Video codecs: MPEG-2, AVC/H.264, HEVC/H.265
Resolution: 1920x1080P, 1920x1080I, 1280x720p, 720x576i, 720x480i, 480x576, 544x576, 640x576, 704x576
Audio Codecs: AAC
Rate Control: CBR/VBR
Transcoder: up to 95 SD / 47 HD (H.264/H.265) streams

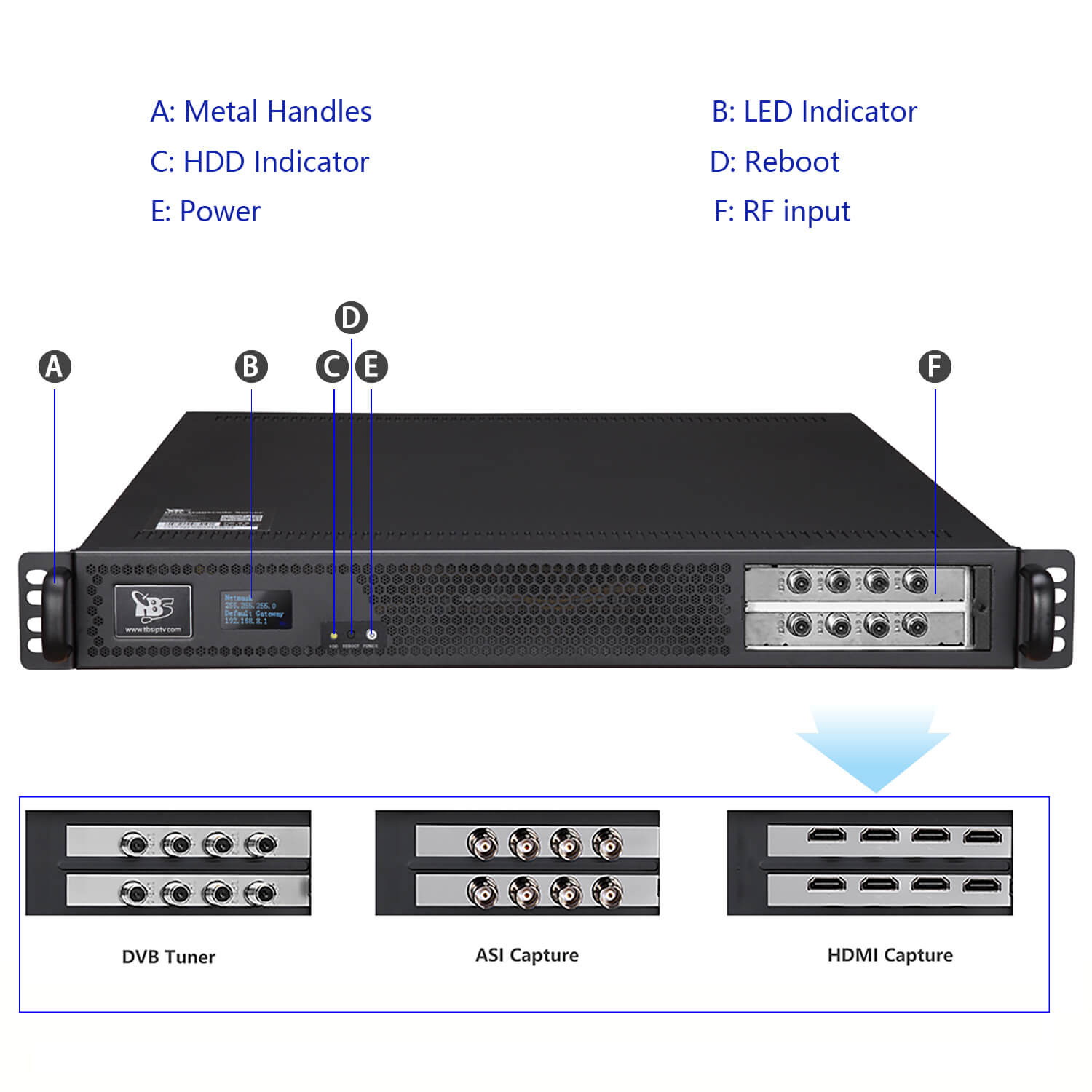

Connections and other details
Power Consumption: less than 200W
Size: 1U
Dimensions (width x depth x height) in cm: 44 x 60 x 5,5
Weight: 12 kg
Package Content
1xTBS-8510
