TBS6902 DVB-S2 Dual Tuner PCIe Card duální satelitní karta DVB-S2I do PCIe slotu ,všechna rozlišení a kodeky (např .: 1080p FullHD, 4K, MPEG, H.264, HEVC a mnoho dalších) jsou podporována, avšak v závislosti na vašem PC-hardware/software

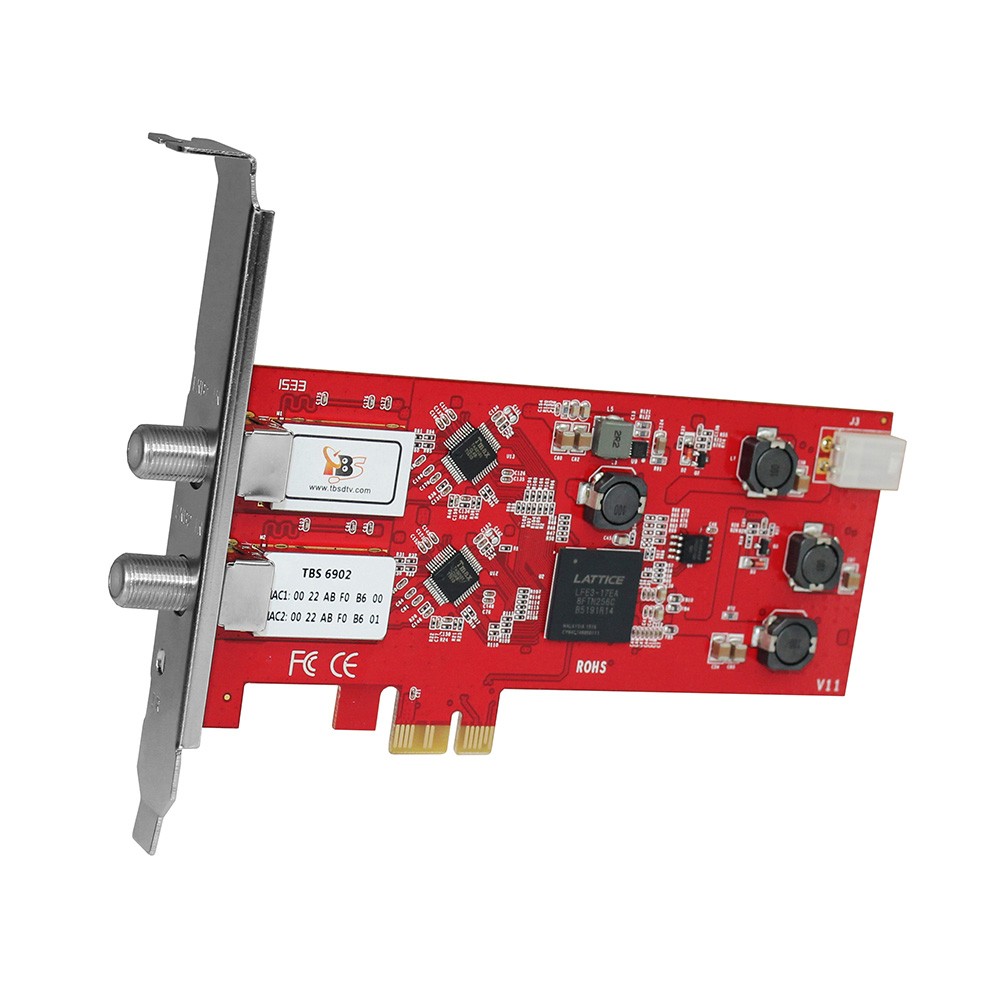

TBS6902 PCI-E DVB-S2 Dual Tuner TV card is a PCI Express interface digital satellite TV Tuner card for watching and recording Free to Air satellite TV on desktop PC. With two tuners, the TBS6902 enables you to watch TV channel from one transponder/satellite while recording another channel from another transponder/ satellite at the same time. This dual tuner card is one of the most popular TV tuners for building IPTV streaming systems.

Benefits:
DVB-S2/DVB-S SD or HD TV receiving
Watch satellite TV & listen to radio on PC
Dual tuner for recording two different channels/transponders
EPG (Electronic Program Guide) support
Unicable/one cable compatible
High-speed data download via satellite

Applications:
Data receiving
IPTV streaming
Media monitoring
Digital content distribution

Specifications:
Frequency range: 950~2150 MHz
Signal Level: -85~-10dB
Symbol rate:
DVB-S QPSK 1-45Msps
DVB-S2 QPSK/8PSK 1-45Msps
Automatic acquisition range : ±10MHz
Automatic pilot detection:
DVB-S2 CCM:
    QPSK+1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    8PSK+3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
    16APSK+/3, 3/4, 4/5, 5/6, 8/9, 9/10
    32APSK+3/4, 4/5, 5/6, 8/9, 9/10
DVB-S
    QPSK+1/2, 2/3, 3/4, 5/6, 7/8
DiSEqC support: 1.0, 1.2, 2.x

Connections
PCI Express
2x LNB IN

System Requirements:
Windows XP / Vista/ 7/8/10, Linux
Available PCI Express x1, x4, x8 or x16 slot
Satellite dish and LNB

Please Note:
1. ALL TBS new models will not supply CDs. please download the driver and software from TBSDTV.com website.
2. TBS 6902 model not support remote control.


Package included:

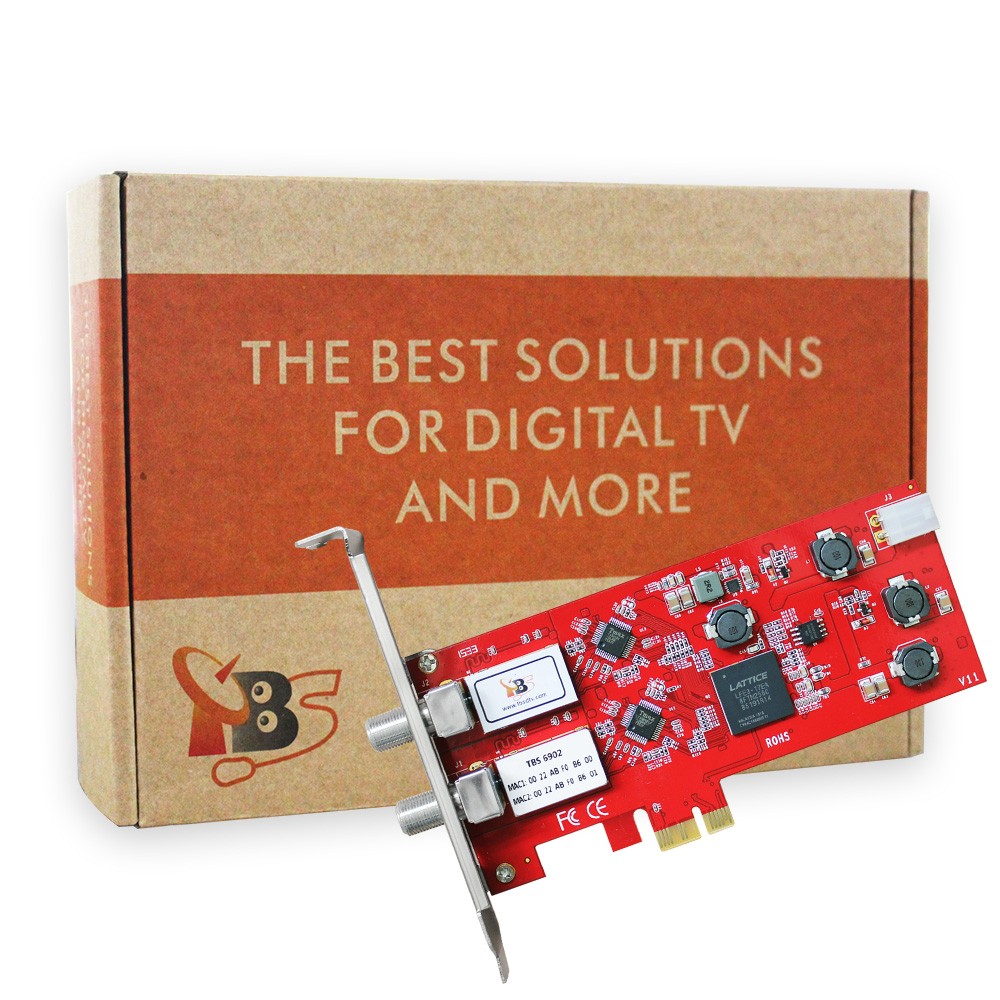

1 x TBS 6902 dvb-s2 dual tuner pci-e card
1 x Power cable
1 x Low profile bracket

(wir behalten uns das Recht vor, diese Beschreibungen und Spezifikationen ohne vorherige Ankündigung zu ändern)
