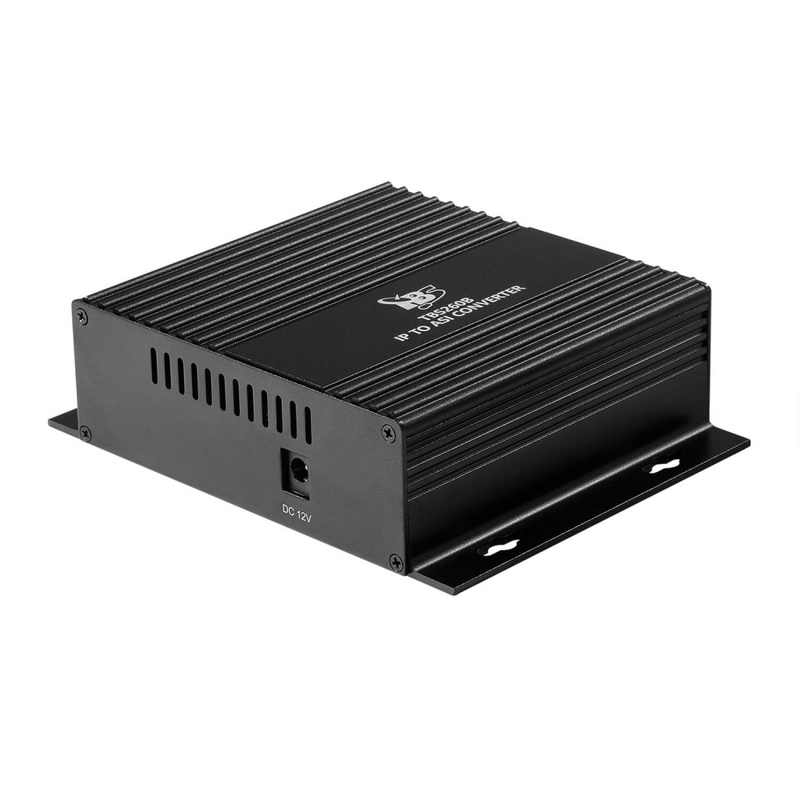

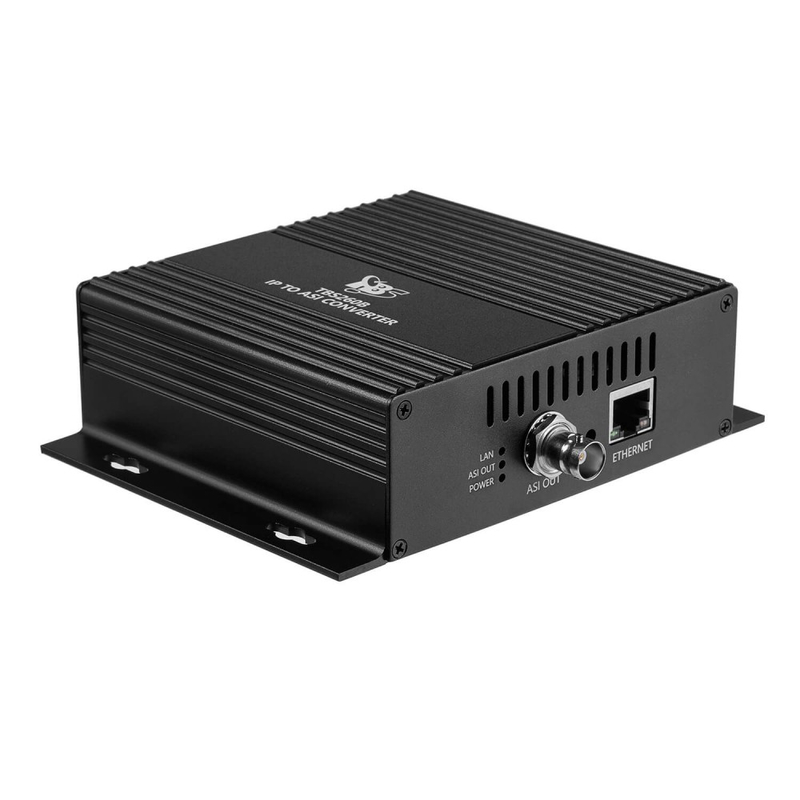

TBS-260b IP to ASI Gigabit-Converter

TBS-260b IP to ASI Gigabits converter is a head-end interface device which is used for DVB ASI and Ethernet. As a kind of IP receiver, this device can recover RTP/UDP database received from the transporting device into TS stream and then output it through the ASI output interface. It?s as part of IP stream receiver to turn the IP stream to standard TS stream. Moreover, it has the function to resist the IP transporting shake, and to restore the PCR of the TS stream.

TBS-260b converter could combine with a lot of TBS products to use, it is ideal for digital TV Broadcasting System, IPTV System, Head-end system of Digital TV branch network



Product Features

Supports IP to ASI conversion
Supports UDP/RTP, unicast and multicast mode
Power off memory, saving the settings for auto-loading after reboot

Specification

Function: IP to ASI conversion
Output: DVB-ASI
Stream Input: Unicast/multicast, UDP/RTP Protocol
Stream Output: TS stream
Control: Web Interface
Jitter tolerance: 1 ~ 120 ms
Output return loss: > 15 dB
Voltage: DC 12V
Power consumption: less than 2.5W

Applications

Digital TV Broadcasting System
Digital TV Programs Transmission
IPTV System
Head-end system of Digital TV branch network
CATV Broadcasting system
Edge side of Digital TV backbone network

Application one: TBS-260b with MOI pro AMD and TBS IP encoder

MOI Pro AMD server can receive different kinds of DVB broadcast TV signals and also can receive live streams from IP. Based on the "remux" function, all the video inputs channels will be multiplexed and combined to one new transponder stream and output via ASI or as a UDP content to IP simultaneously in broadcast quality.





Application 2: Multi-channel H.265/H.264 HDMI encoder to ASI converter

Multi-channel IP encoder to ASI converter is a professional 14x HDMI H.265/H.264 audio/video encoding and 1x DVB-ASI output device, it can recover http database received from the 14 HDMI inputs into TS stream and then output it through the ASI interface. It has a main management board inside, based on the ?remux? function, 14 HDMI H.265/H.264 video inputs will be multiplexed and combined to one new transponder stream and output via ASI or as a UDP content to IP simultaneously in broadcast quality

Connection and other details

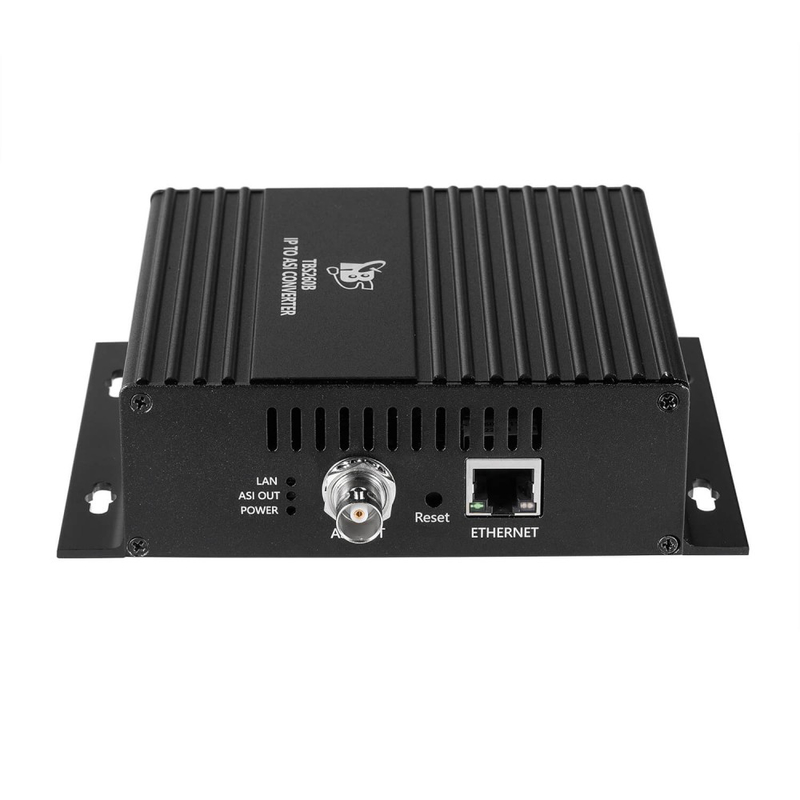

Interface: RJ45 100/1000 Mbps Ethernet Interface
Dimensions (W x D x H in cm): 14.6 x 11.1 x 4
Weight: 0.8 kg

Minimal System Requirements

Operating system: Linux or Windows XP, 2k3/2k8, Vista, 7, 8/8.1, 10

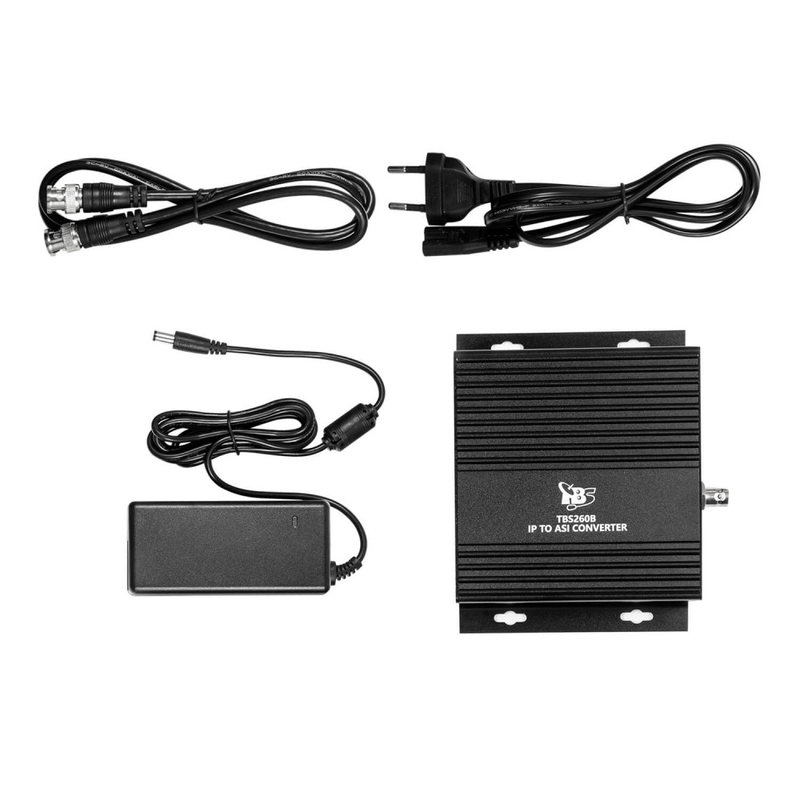

Package Contains

1 x TBS-260b
1 x Power Adapter
1 x DC Line
1 x BNC Cable
(wir behalten uns das Recht vor, diese Beschreibungen und Spezifikationen ohne vorherige Ankündigung zu ändern)
