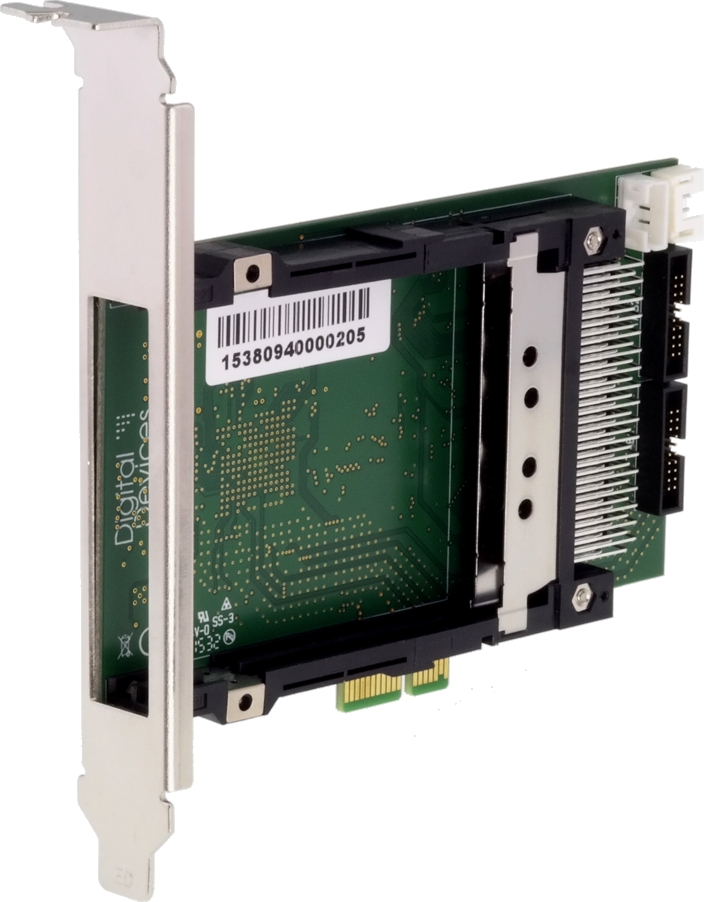

Dual common interface (CI) for two CAM modules
Decryption for all Digital Devices DVB-S2 and DVB-C/T cards
Common interface (CI) with Multi Transponder Technology (MTD)
2 CI slots for two independent CAMS on one socket
Up to 2 X 4 decrypted pay TV channels
Only one CAM required to decrypt 4 encrypted pay TV channels. Supports watching one encrypted channel and record several encrypted channels simultaneously.
Notice: This function is not supported by all CAMs and providers.
Notice: MTD is currently supported under windows only.
Data rates
> 96Mbit for each CAM and adjustable to the CAM
Also supports non common data rates < 72 Mbit
Expandable module system
connect to all DuoFlex, Cine DVB cards and Octopus series
Cascading of CAMs
Separate supply voltage for each CAM
Allows hot pluggable of CAMs
PCI Express support
connect via PCIe Gen2 x1 up to x16 slot to connect 2 Digital Devices DuoFlex S2 or DuoFlex C/T (max. 4 Tuner) or to connect TV cards from other vendors (only single transponder mode, 1 CI = 1 tuner)
Suitable for very dense cases.
Brackets with half or full size are shipped together with the card
Supported operating systems
Microsoft Windows® 7/8
Linux (Kernel 2.6.34 and higher)
Supports up to 4 tuners
DVB-S2 (SAT) and/or DVB C2/T2 (cable/terrestrial) in all combinations.
Lifecycle
MTBF@45°C >1,000,000H
Green IT
No use of tantal capacitors
No use of electrolyte capacitors
Standard connectors
PCIexpress
connect via PCIe Gen2 x1 up to x16 slot
20-pin. socket for data-cable to connect Digital Devices DuoFlex-Karten (max. 4 Tuner)
Security
produced and developed according to european standards, DIN EN ISO 9001:2000
Green IT
RoHS compliant
WEEE DE 99353762
Power consumption
< 2 watts plus power consumption of the CAM modules
System requirements
1x PCIe slot
Standard connectors
PCIexpress
connect via PCIe Gen2 x1 up to x16 slot
20-pin. socket for data-cable to connect Digital Devices DuoFlex-Karten (max. 4 Tuner)
Security
produced and developed according to european standards, DIN EN ISO 9001:2000
Green IT
RoHS compliant
WEEE DE 99353762
Power consumption
< 2 watts plus power consumption of the CAM modules
System requirements
1x PCIe slot
Tested CAM modules
Mascom Alphacrypt Light + Easy TV
SMIT Irdeto/Cryptoworks
SMIT Viaccess with SRG
Technicrypt CW with ORF
SCM Cryptoworks
Supported operating systems
Linux (Kernel 2.6.34 and higher)
Microsoft Windows® 7/8(.1)/10 (incl. Windows® Media Center)
Dimensions
H 71,5mm, L 108,5mm, D 15mm
